Polarized Keying System Waterproof Power Connector Panel Receptacle Avoid Cross Interface

Name: Polarized Keying System Waterproof Power Connector Panel Receptacle Avoid Cross Interface
Brand: RAYMO
Price: 1 USD

Wholesale Polarized Keying System Waterproof Power Connector Panel Receptacle Avoid Cross Interface from china suppliers

Brand Name : RAYMO

Model Number : EEG.0K.302.CLL

Certification : REACH, ISO:9001-2015, CE ,RoHS2.0, SGS

Place of Origin : SHENZHEN,CHINA

MOQ : 1 Piece/Pieces

Price : Negotiable

Payment Terms : Western Union, L/C, D/A, D/P, T/T

Supply Ability : 5000 Pieces / Week

Delivery Time : 5-7 working days

Packaging Details : Plastic Bag & Carton

Series : Circular Waterproof Connector

Shell size : 0K

Contact no. : 2, 3, 4, 5, 6, 7, 9

Application : Industrial Control

Insulator : PPS (PEEK is an option)

Terminals : Female solder

Contact Now

Raymo EEG EEA EGG HGG 0K, 1K, 2K, 3K series, Circular Waterproof Connector, panel receptacle, EEG.0K.302.CLL

Description

Contact Count: 2poles
Contact Type: Panel Sockets
Material Insulator: PPS
Shell Material:Brass in chrome plated brass
100% compatible with Original Lemo connector
IP68 Waterproof connector

Features

RM-K series has same insualtor and contact configuar as B series
360° EMC shielding
Alignment Key and Polarized Keying System to avoid cross-interface
High density assembly to save space
Secure Push-pull Self-locking system
IP66/68
Available solder, PCB and right angle PCB contact
can be 100% compatible with original lemo connector

Shell size and contacts for option

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
RM-0K	2	3	4	5	6	7	9
RM-1K	2	3	4	5	6	7	8	10	12	14	16
RM-2K	2	3	4	5	6	7	8	10	12	14	16	19
RM-3K	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
RM-4K	7	10	24

Application

Automotive
Medical LIKE Diagnostic devices
Test & measurement LIKE Sensors
Transport LIKE Maritime
Defense & Security LIKE Target acquisition
Broadcast LIKE Studios and outside broadcasting
Energy LIKE Remote camera control
Extreme LIKE Nuclear

Company information

RAYMO is a manufactuer that:

Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
Can be 100% compatible with original LEMO • •FISCHER• HIROSE • BINDER •Military 38999
Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, BNC, B680,
B423 , 38999, 26482
CO, Form A, Form E for customer clearance
CE, ROHS, REACH, ISO:90001-2015, SGS Audited manufacturer
All the items can work normally after 5000times mating

Polarized Keying System Waterproof Power Connector Panel Receptacle Avoid Cross Interface

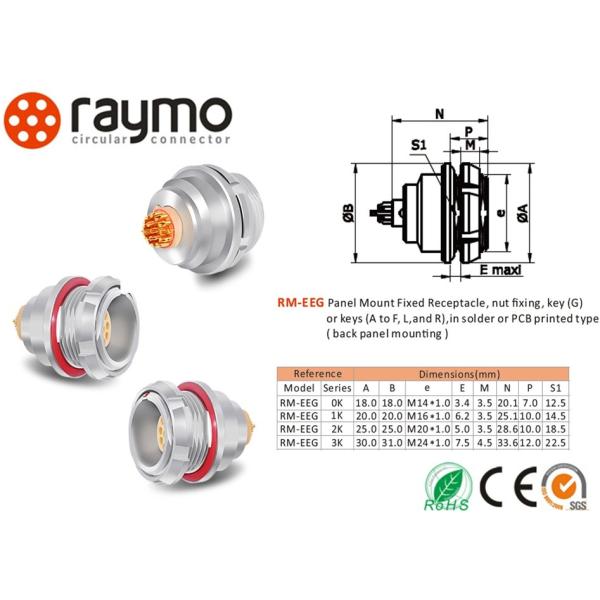

RM-K Series EEG Shell type dimension and pictures

Polarized Keying System Waterproof Power Connector Panel Receptacle Avoid Cross Interface

Why you need buy Raymo's compatible connector?

100% compatible lemo connector
Help you save at least 50% cost
Cable assembly offer,help you save prction time
Large stock,short lead time and easy to buy
We can provide OEM/ODM service and cable assembly solution
it has excellent compatibility with many leading supplier
our company has over 9 years experience and strong professional research and development capabilities.Advanced development and management, comprehensice R&D TESTING and highly automatic prction line make our prcts high reliablilyty and high performance.
Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS certification

FAQ

1. Are your company a professional manufacturer?
Raymo: Yes, we SGS audited manufacturer

2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.

3. Free sample?
Raymo: Available. Any needs, please contact us.

4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass prction.

5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.

6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
